BIPOINT - DRUM Vending Machine

The BIPOINT is a vending machine based on a rotary drum mechanism. It is designed for dispensing a large number of items of various sizes. It performs excellently in tooling, PPE, warehousing, and healthcare sectors.

Thanks to the flexible drum design and large capacity, it can be placed in communication routes and near workstations with high resource consumption, which increases production line efficiency. Despite its high storage capacity, its compact dimensions allow for flexible placement of distribution points in selected locations, without the need to reorganize workstations.

The BIPOINT vending machine is an essential tool for companies and medical facilities aiming to improve their consumable distribution system while simultaneously reducing the risk of shortages.

The BIPOINT will find application wherever costs are generated, and valuable consumables require strict control.

Gallery

Benefits

The BIPOINT rotary vending machine is a flexible and functional tool that enables:

REDUCED CONSUMPTION

by up to 50%

FULL IDENTIFICATION

of users

AUTOMATION

of order and report dispatch

TOTAL CONTROL

of issues, returns, receipts in real-time

FULL AVAILABILITY

of resources 24/7

DEVICE MOBILITY

proximity to workstation

Features

WELDED CONSTRUCTION ON A SUPPORT FRAME

Thanks to its welded mechanical construction, DYNABOX is the most durable dispenser on the market. The support frame is integrated into the structure, facilitating device movement using a pallet jack or forklift.

WELDED CONSTRUCTION ON A SUPPORT FRAME

Thanks to its welded construction, the BIPOINT vending machine is the most durable dispenser on the market. The integrated support frame facilitates device movement using a pallet jack or forklift.

POWDER COATING

High-quality powder coating provides durable and resistant protection against mechanical damage and corrosion. This finish helps maintain the dispenser in good operational condition for many years.

It is possible to choose the color scheme of individual dispenser components from the RAL palette.

SLOPED ROOF

The sloped roof effectively prevents unwanted items from being stored on top of the machine. This helps avoid the risk of items falling or liquids spilling onto the machine.

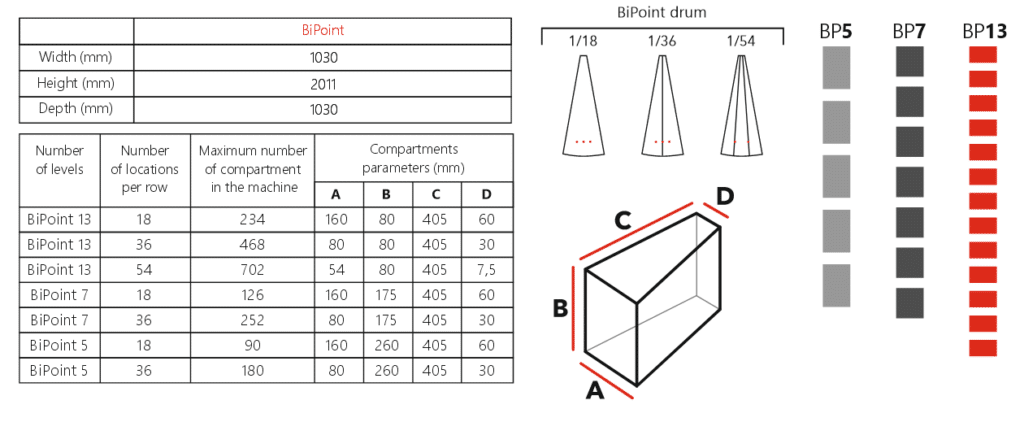

UP TO 702 INDEPENDENT LOCATIONS

The BIPOINT vending machine offers an optimal number of drum levels to choose from: 5, 7, and 13, allowing for storage of items of various sizes. Additionally, it is possible to create an individual configuration for the number of compartments within the module.

MANUAL UNLOCKING MECHANISM

In the event of a malfunction or power failure, the machine features a manual unlocking mechanism for the compartments, allowing authorized users access to all products within the dispenser.

15" TOUCHSCREEN

The large touchscreen provides intuitive access to various menu items. User panel operation is exceptionally simple and clear thanks to a menu enhanced with pictograms. The advanced software parameters are the result of many years of experience gained from industrial projects.

SUPPLYPOINT SOFTWARE

The advanced software parameters are the result of many years of experience gained from industrial projects. It enables differentiated access levels, information content management, process monitoring, and many other functionalities.

COMPATIBILITY WITH THE ENTIRE RANGE OF TEMREX DISPENSERS

The BIPOINT vending machine is compatible with every other dispenser offered by TEMREX. At any time, the system can be expanded with additional rotary, locker, or drawer modules – up to 15 machines with a single MASTER screen module.

ADDITIONAL OPTIONS

IDENTIFIER READER

secure access to the dispenser using a card reader, selected to match the Client’s identifier technology.

BARCODE SCANNER

1D and 2D barcode scanner streamlines item scanning, simplifying retrieval and replenishment in a short time.

LTE / WI-FI ROUTER

LTE/Wi-Fi router with external antennas enables sending analyses and statistics without a connection between the Client’s network and the dispenser, thus preserving network integrity.

ADDITIONAL ACCESSORIES

Plastic containers are essential for managing bulk items such as nails, washers, and nuts. The containers also serve as retention tanks – in case of needing to store hazardous or environmentally harmful substances.

DISPENSER CUSTOMIZATION

it is possible to personalize the dispenser for a product or brand using high-quality graphic wrapping.

WARRANTY

TEMREX dispensers are covered by a one-year warranty for transport, equipment, and accessories, excluding consumables subject to wear during normal operation. The warranty also includes access to mechanical and IT hotlines. After the first year of warranty, it is possible to extend it for subsequent years.
